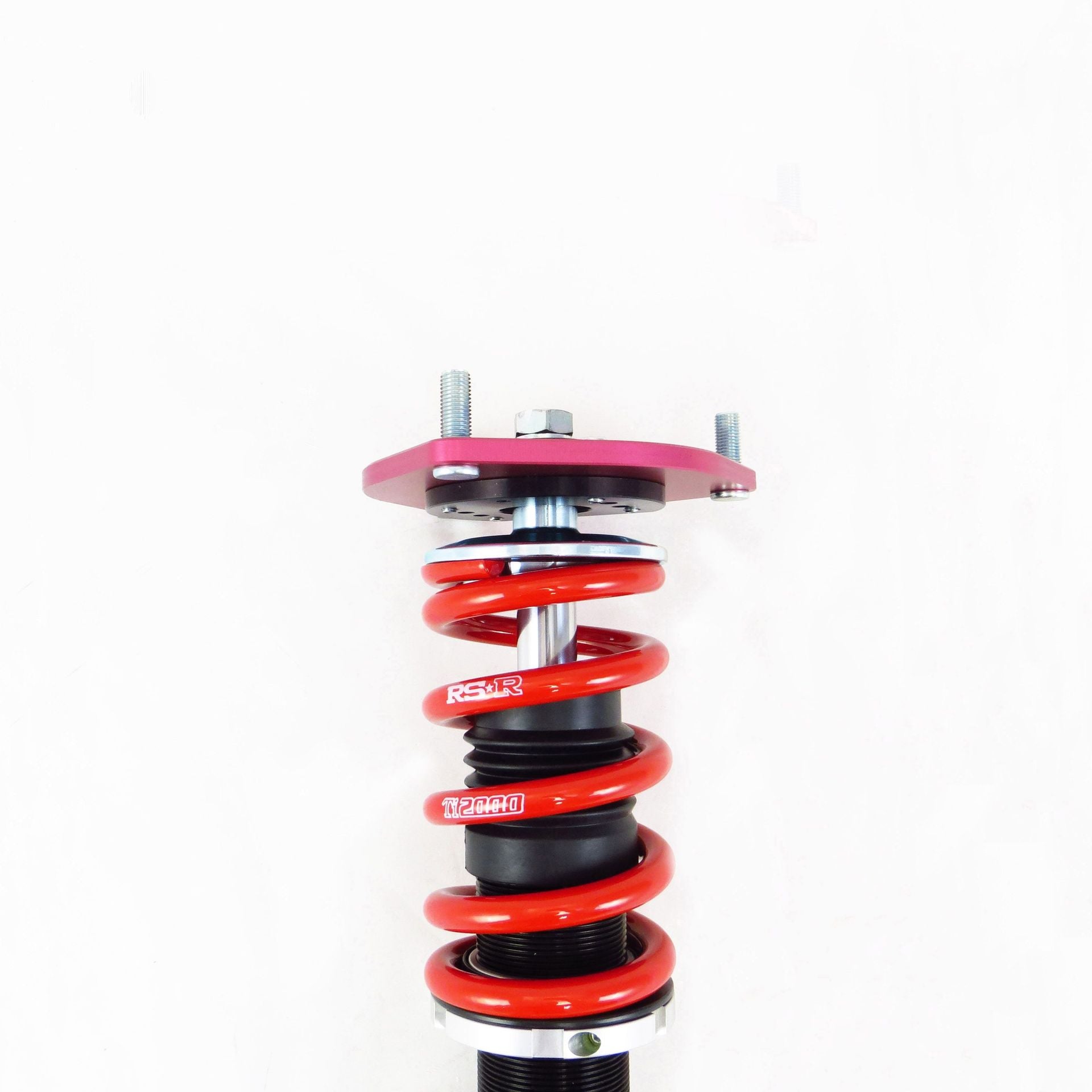

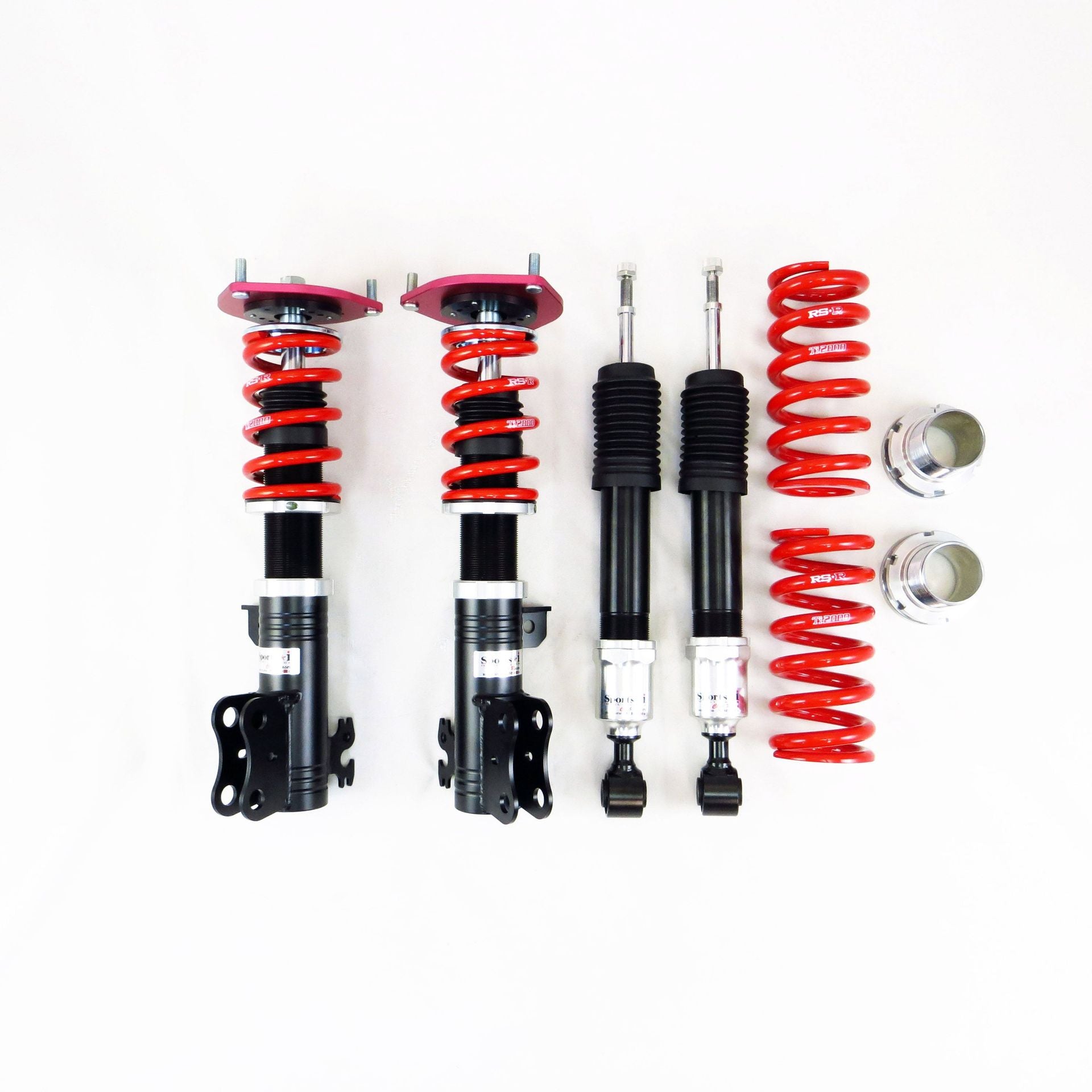

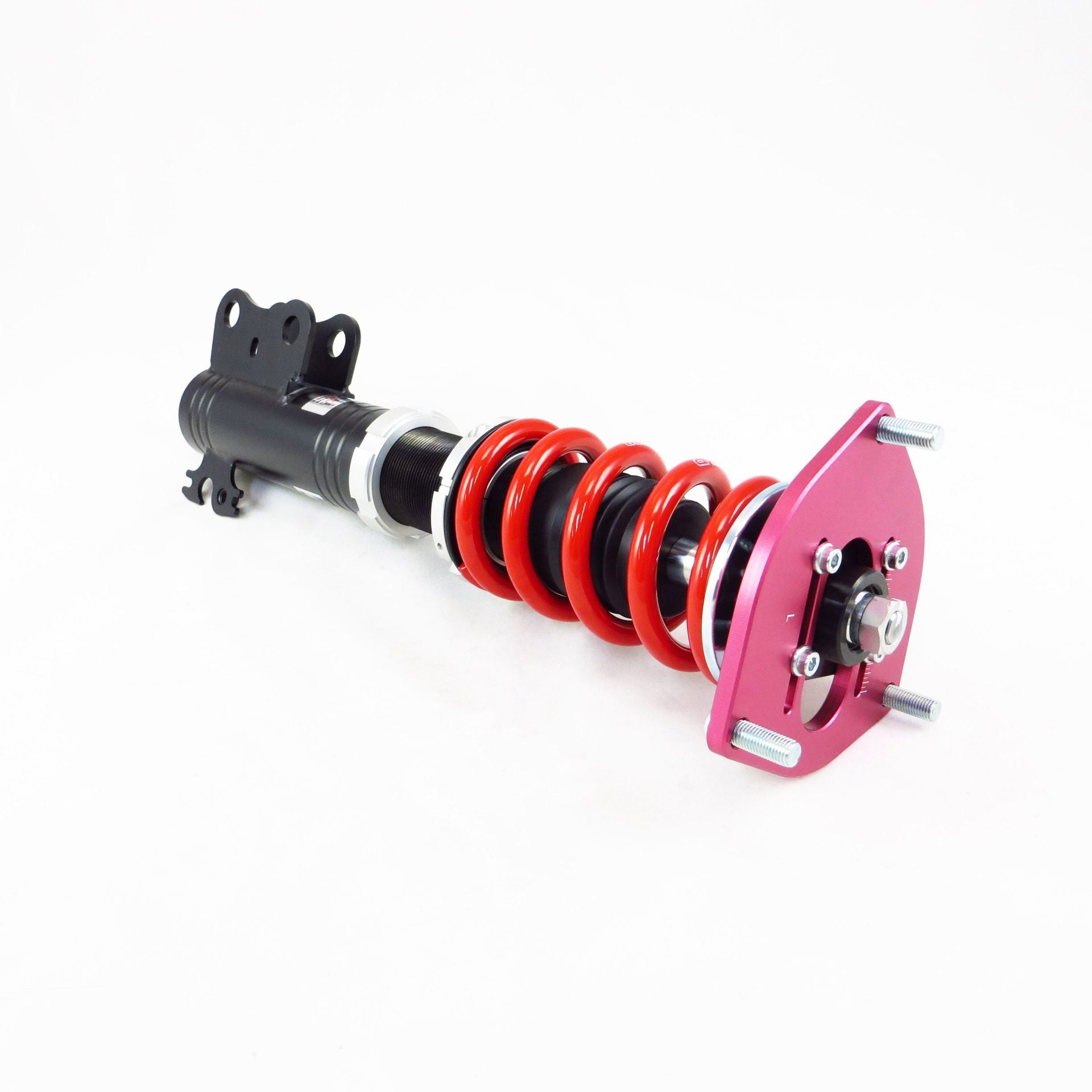

RS-R Sports*I Club Racer Coilovers - GR Corolla 2023+

RS-R Sports*I Club Racer Coilovers - GR Corolla 2023+

SKU:RSR-XNSPT558MP

Regular price $2,499.00 USD
Regular price Sale price $2,499.00 USD
Sale Sold out

Fine tuned for competition, RS-R Club Racer Series offers unquestionable performance with its track dedicated setup.

Part Number: XNSPT558MP

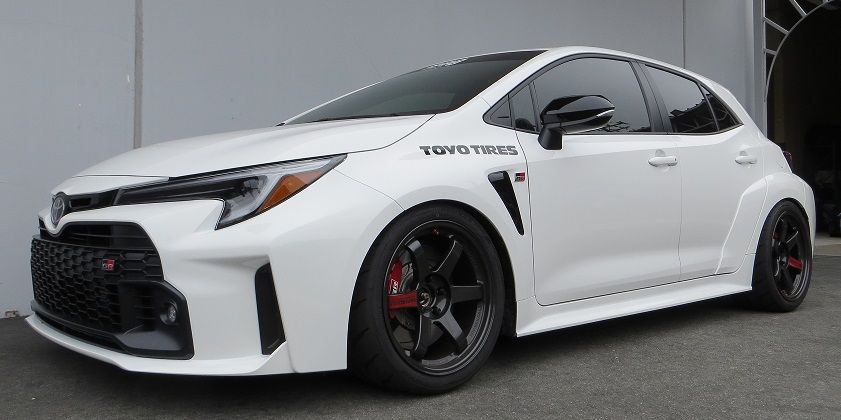

Fitment: 2023+ Toyota GR Corolla
Chassis code: GZEA14L

Preset Approximate Height
Front: -30mm to -35mm (-1.2in to -1.4in)
Rear: -35mm to -40mm (-1.4in to -1.6in)

Maximum Adjustment Range
Front: 0mm to -90mm (0in to -3.6in)
Rear: -15mm to -65mm (-0.6in to -2.6in)

Recommended Adjustment Range
Front: -10mm to -55mm (-0.4in to -2.2in)
Rear: -15mm to -65mm (-0.6in to -2.6in)

Spring Rate
Front: 10.0kg/mm
Rear: 13.0kg/mm

Additional Information
Dampers are 36 way adjustable in the front and the rear
Included but not pictured: hex and allen wrench, poly seat for rear spring, hex nut for rear shock, water-proof rubber cover, bush collar for rear, spring tube
